KIO Store

KIO Hexbeam

This plug and play hexbeam is available for any combination of bands 20, 17, 15, 12, 10 and 6 meters.

Start with 20 meters. Any beam can be easily expanded now or later by purchase of additional bands.

The price for a single band hexbeam is $561 and for all six bands is $891.

Order the KIO Hexbeam	Price
KIO Hexbeam (20 meters only)	$561.00
Plus 17 meters	$66.00
Plus 15 meters	$66.00
Plus 12 meters	$66.00
Plus 10 meters	$66.00
Plus 6 meters	$66.00

Optional Accessories

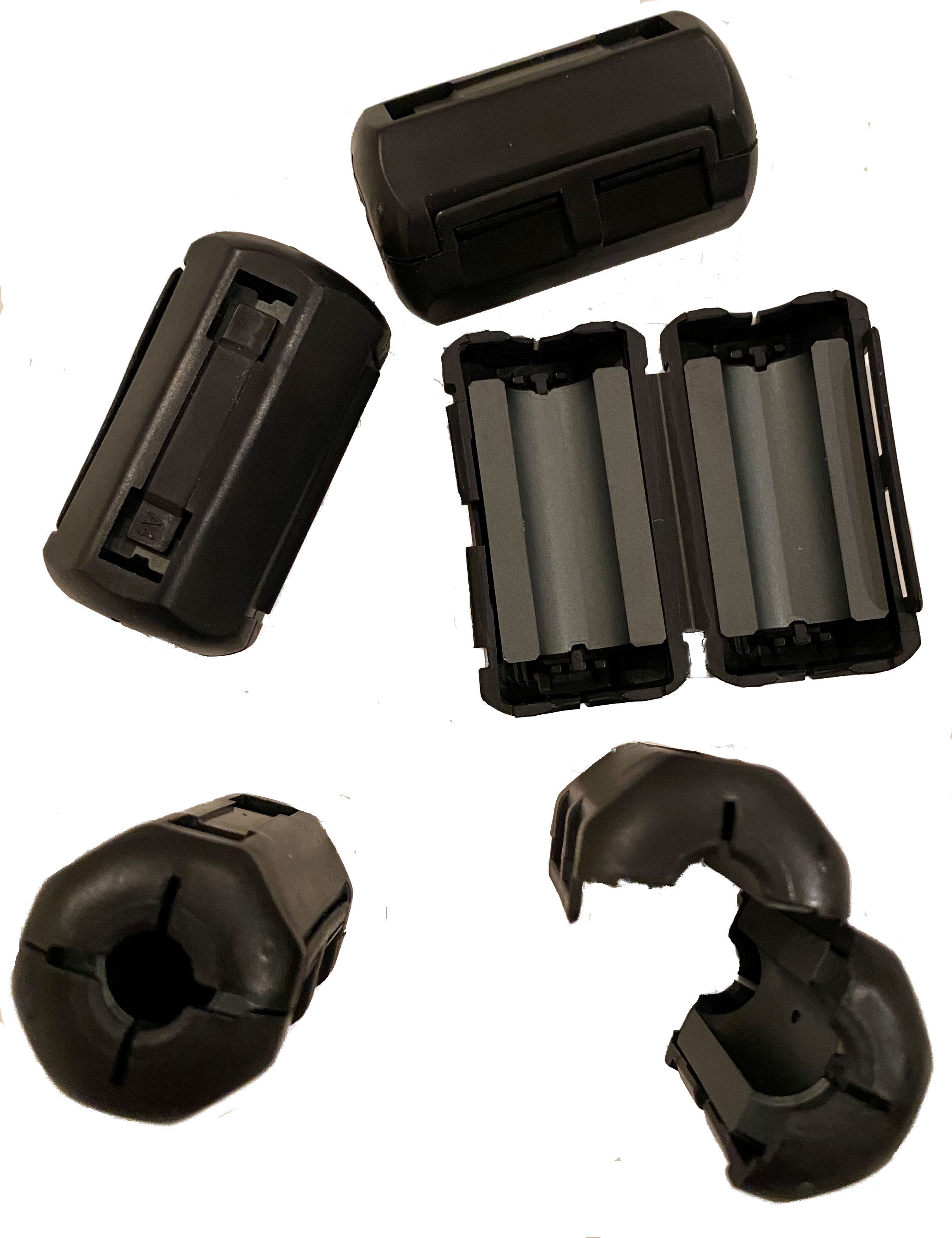

KIO Ferrite Bead Choke Balun kits

-Five type 31 Mix ferrite snap on beads (see details on why a balun is important)

BAL-8 Snap On balun fits 1/2 inch cable (RG8, RG213, 9913, LMR400)

BAL-8X Snap On Balun fits 1/3 and 1/4 inch cable (RG8X, RG58, LMR200)

Ideal for cable that is already assembled with connectors installed.

Type of Balun	Price
BAL-8 Snap On for RG8, RG 213 size cable	$47.00
BAL-8X Snap On for RG8X, RG58 size cable	$32.00

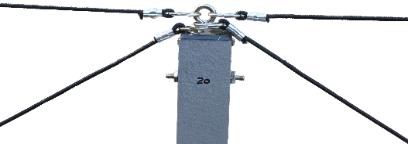

Ice Cords

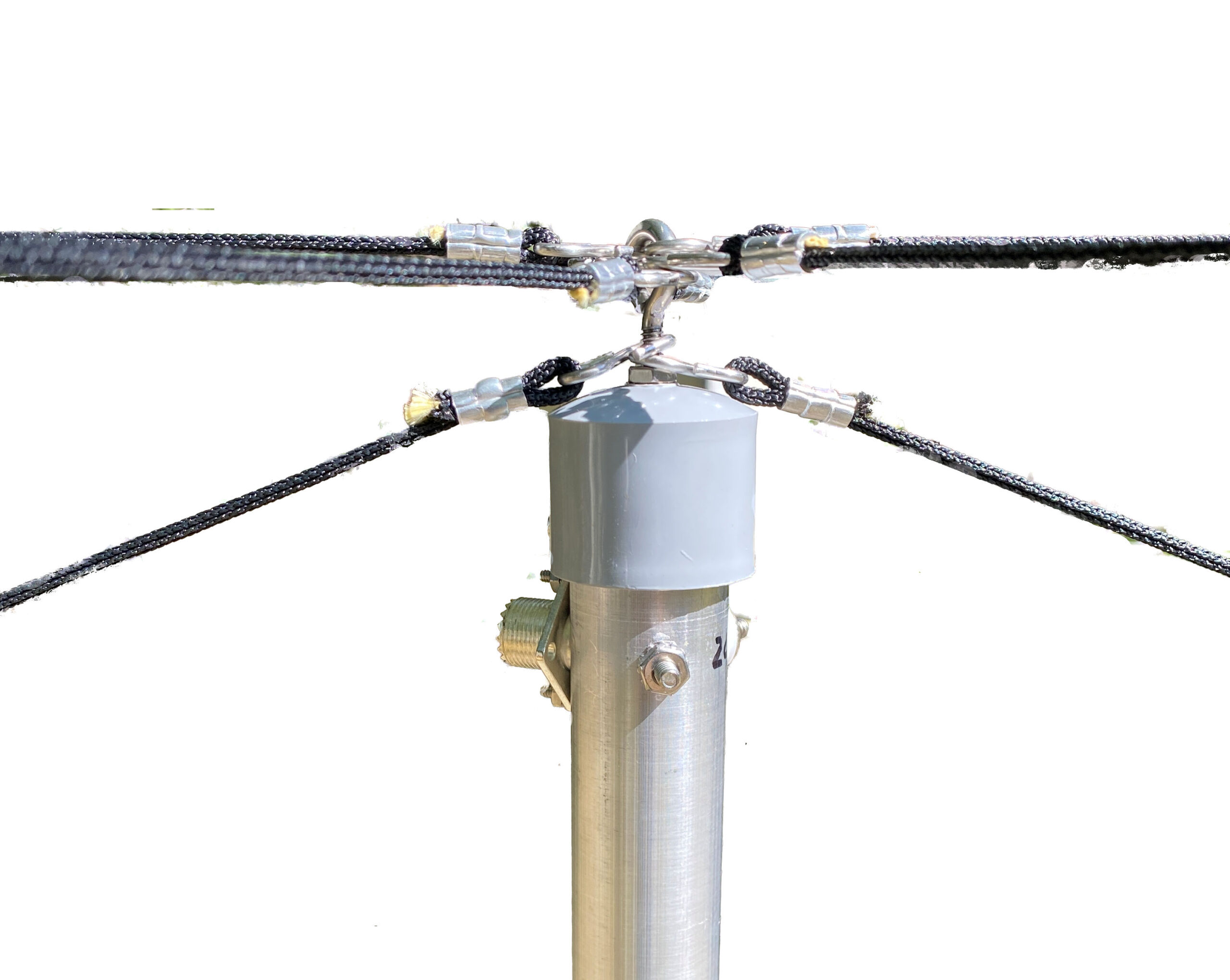

Six Kevlar, no stretch cords with Dacron covering and hardware attachments provide vertical support of your hexbeam arms for the weight of ice and snow. (see details)

	Price
Set of Six (6) Ice Cords	$72.00

Fastening the hexbeam to your mast

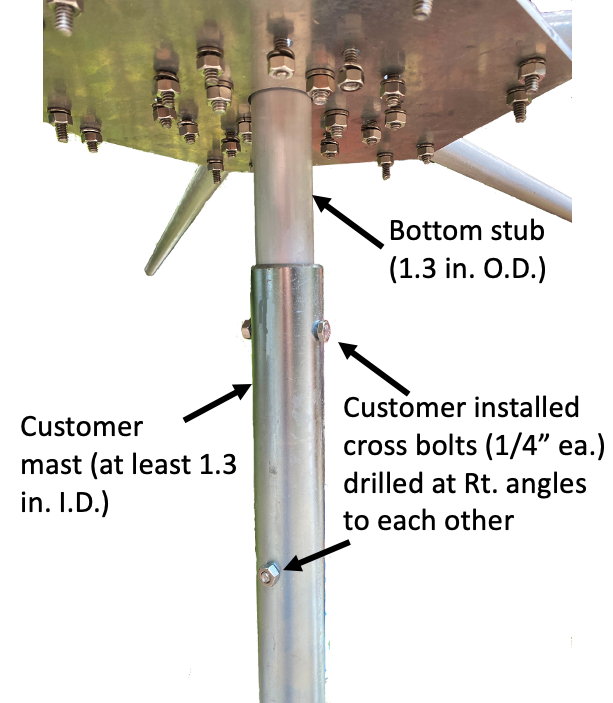

Method one (Simplest and most effective)

Slip the hexbeam bottom stub down into your mast

The bottom of the Hexbeam baseplate is shown at left with the center post protruding below the bottom of the baseplate about 8 inches. The Hexbeam can be mounted on your mast by inserting this post (1.3 inches O.D) into a larger mast and cross bolting it.

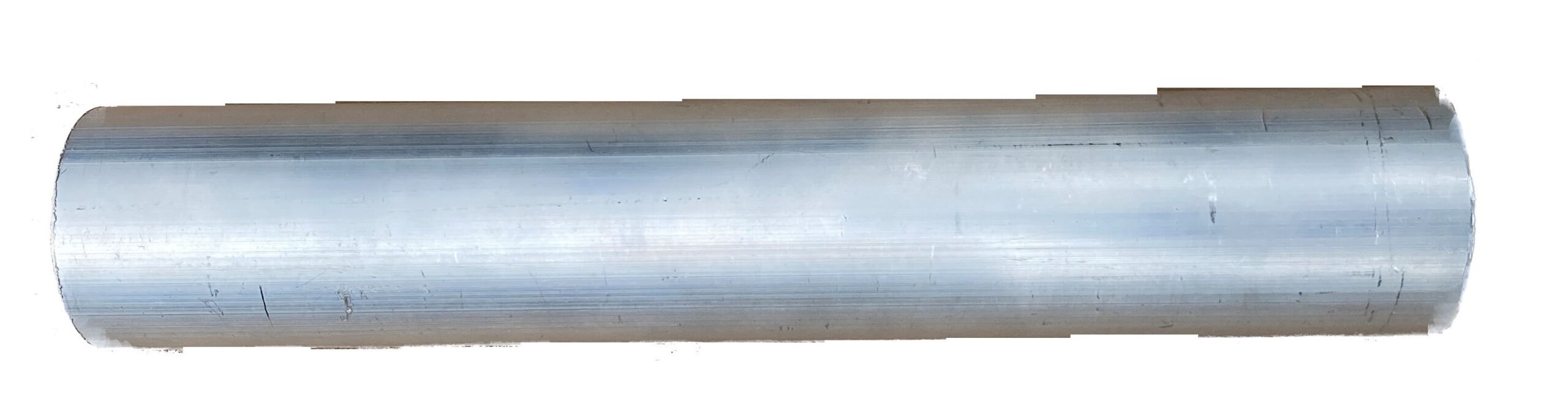

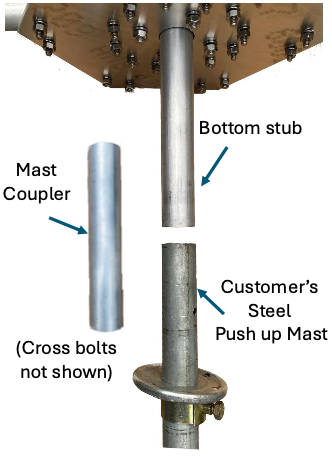

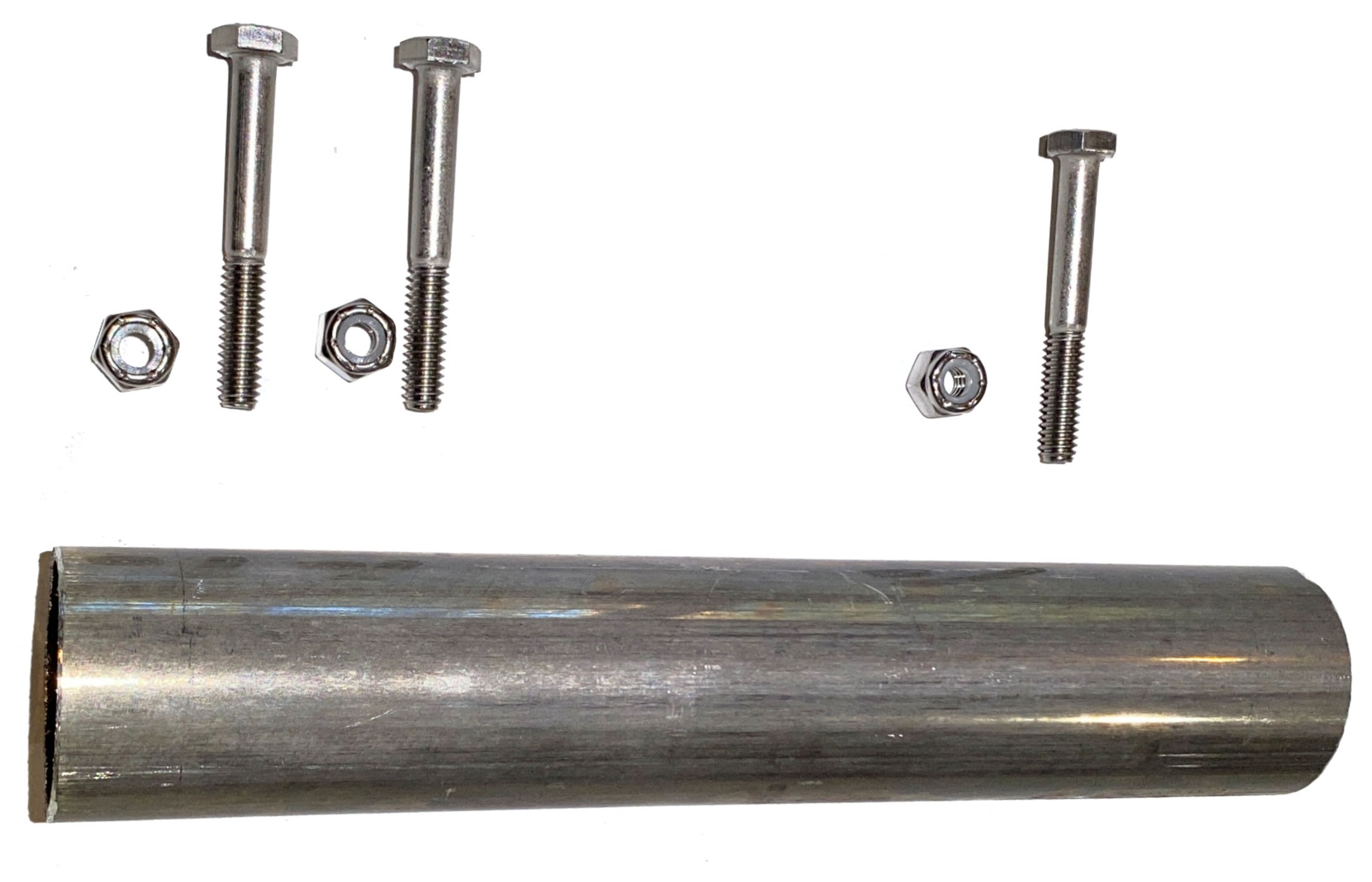

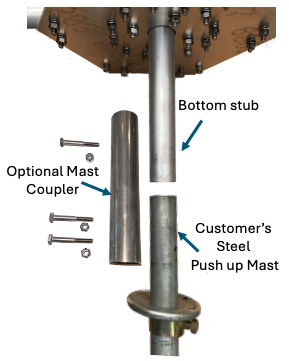

Method two (Ideal for steel push mast)

Use a short pipe coupling the hexbeam bottom stub

to the customer-provided steel push up mast

A short piece of pipe with an inside diameter of 1.33 inches will slip over the hexbeam bottom stub and also a Rohn steel push up mast. Install crossbolts as in Method one above.

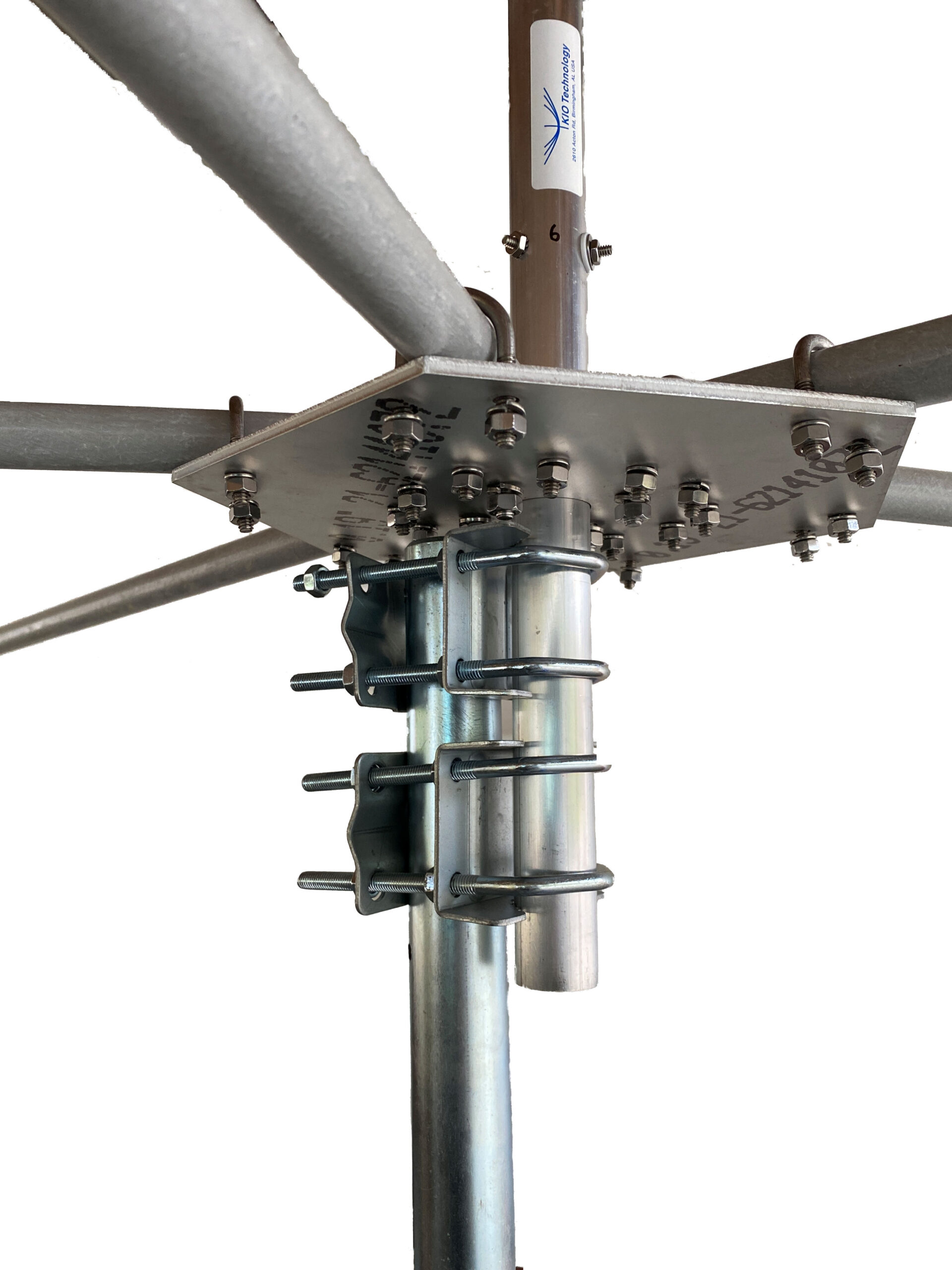

Method three (when the other two methods won’t work)

Use pipe to pipe clamps

If the first two methods won’t work for you, a pair of pipe to pipe clamps can be used as shown left. The clamps do not come with the Hexbeam unless you order them.

The pipe to pipe clamps can be purchased below.

Pipe to Pipe Mast Clamp

This stainless steel clamp is capable of attaching the Hexbeam bottom post to a pipe of up to two inches O.D. Two are generally required as shown above.

Item	Price
Two pipe to pipe clamps (Recommended)	42.00
One pipe to pipe clamp	$23.00

Add a band to your existing KIO Hexbeam.

Kit includes a tuned, fully assembled wire set and spreader arm wire guide hardware, for each band ordered.

Item	Price
20M Add band kit	$66.00
17M Add band kit	$66.00
15M Add band kit	$66.00
12M Add band kit	$66.00
10M Add band kit	$66.00
6M Add band kit	$66.00
